STÄUBLI TX200L CS8 HP pallet transforming

Brand
STÄUBLI
Designation
STÄUBLI TX200L CS8 HP pallet transforming

Available immediately!

Main Features:

  • 6-axis robot: Model Stäubli TX200L, CS8 HP controller from 2020.
  • Pallet capacity:
    • Standard pallets (800 x 1200 mm or 1000 x 1200 mm)
    • Box pallets (1100 x 1200 mm) with 3 possible heights: 800 mm, 1000 mm, 1170 mm
    • Up to 80 types of pallets in input and output
  • Package dimensions:
    • Width: from 100 to 600 mm
    • Length: from 100 to 600 mm
    • Height: from 100 to 400 mm
    • Max weight: 20 kg
  • Average processing time: 22-25 seconds per package
  • Safety: Light curtains with muting in input and output + physical safeguarding of the installation
  • Vacuum gripper with 2D DataLogic P17 camera, laser sensor for detecting carton height and mechanical anti-fall blocking system

Additional Equipment:

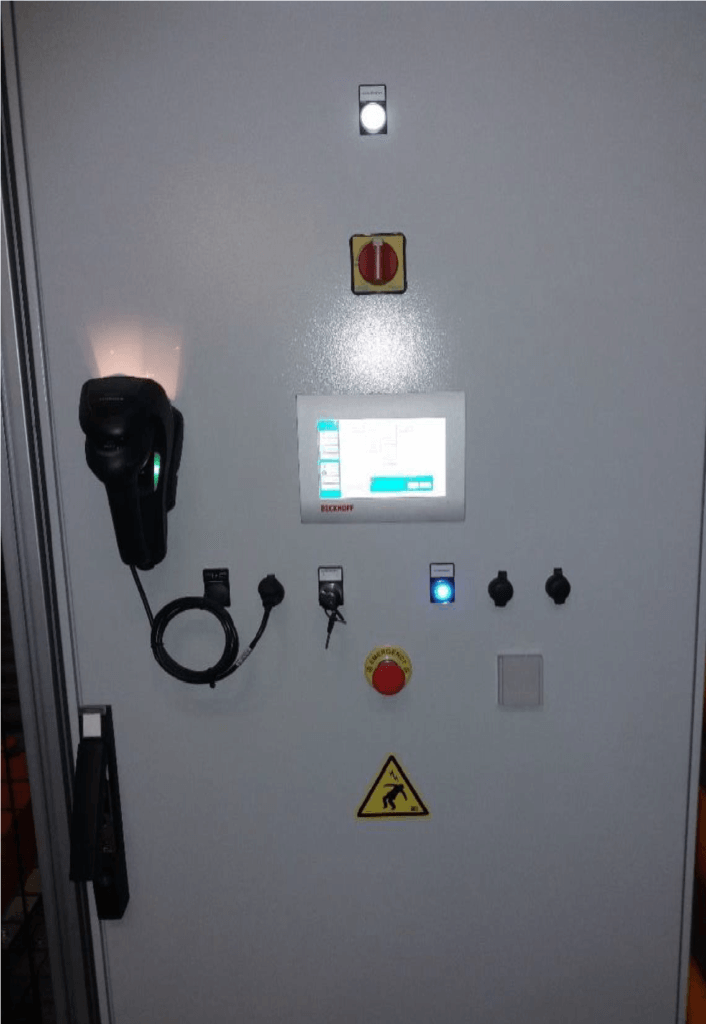

  • Control interface: Beckhoff touch screen, barcode scanner
  • Screw compressor and air dryer and a 500L air tank
  • Box turner: Bidirectional operation with integrated rotation
  • Beckhoff PLC for automation

History:

  • Cell ordered in 2020 and received in November 2021, ceased operation in Autumn 2022 (market loss).
  • Usage counter: approximately 553 hours
  • Complete solution for pallet management, with reliable components and robust mechanical design.

Ideal for logistics, pallet transformation, or in an industrial environment requiring automation and flexibility.

The cell can be seen in operation at the seller’s site (France – Auvergne Rhône-Alpes region) by appointment.

It is possible to split the package and consider replacing the STÄUBLI TX200L robot with another robot, subject to a feasibility study.
